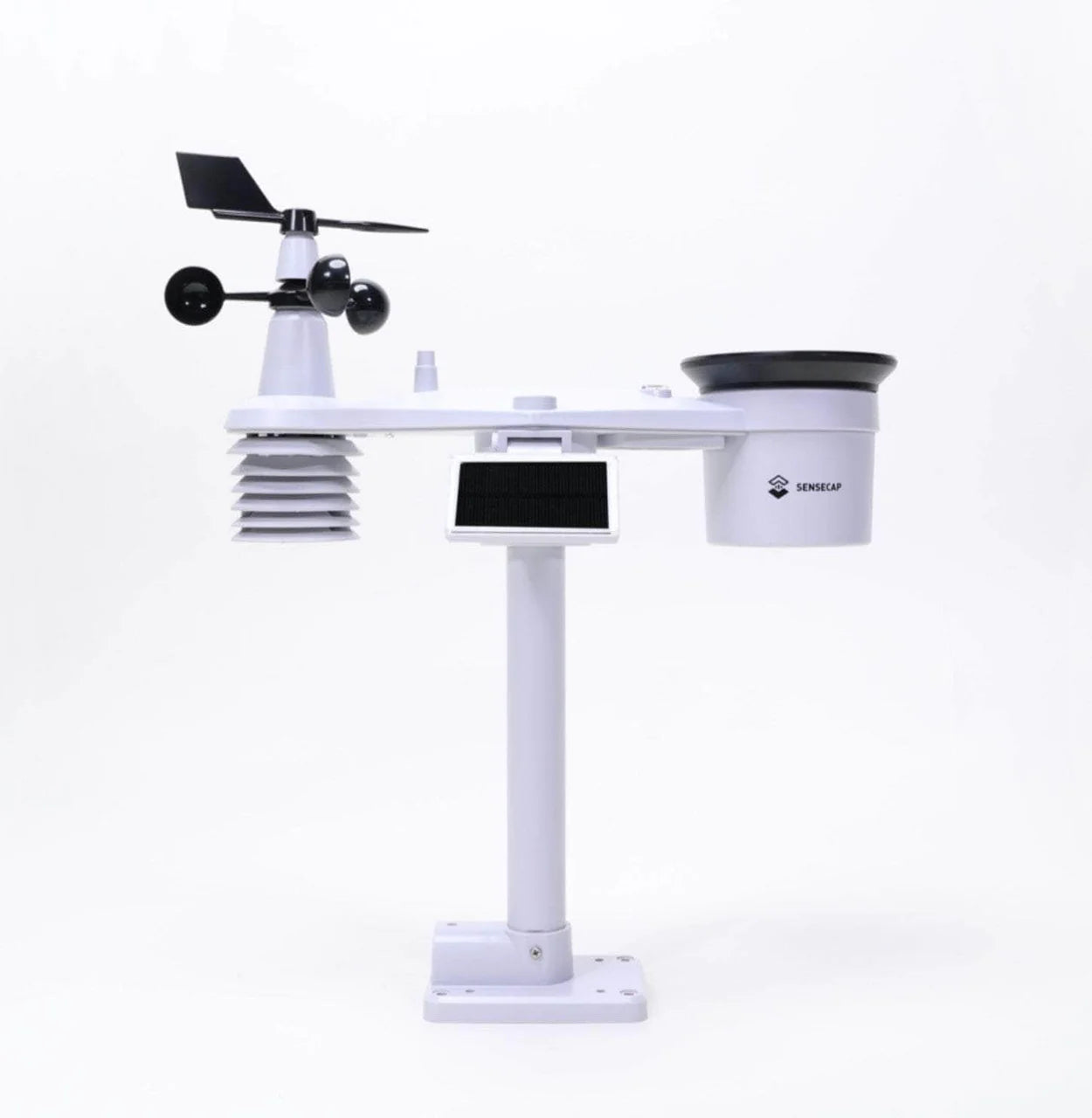

SenseCAP S2120 LoRaWAN Weather Station 8 sensors
SenseCAP S2120 LoRaWAN Weather Station 8 sensors
Couldn't load pickup availability
Description
SenseCAP S2120 LoRaWAN Weather Station 8 sensors
SenseCAP LoRaWAN S2120 Weather Station collects and uploads 8 sensors: air temperature, humidity, wind speed/direction, rainfall, light intensity, UV index, and barometric pressure data supported by worldwide LoRaWAN networks. The S2120 weather station is suitable for applications in gardens, agriculture, meteorology, urban environmental monitoring, and other scenarios. It also enables low maintenance cost for its ultra-low power consumption, reliable performance, and built-in Bluetooth for OTA configuration and remote device management.
Features
-
Bluetooth Configuration in 1 min & Remote Management: finish the configuration work in just a few clicks, enable remotely monitor and manage real-time and historical data via the SenseCAP Mate App and SenseCAP Portal
-
Ultra-low Power Consumption, Easily Replaceable Battery & Expandable Capacity: powered by 0.5W solar panel and 3*standard 1.5V AA size dry batteries with up to 2 years service life (support external battery compartment with capacity for six batteries to double the service life)
-
Reliable Performance: suitable for outdoor harsh environments such as high UV exposure, heavy rain, dusty conditions, etc
-
One-stop Deployment & Flexible Layout: accessories include poles, mounting stand, etc. for quick installation and can be set up at almost any location
-
Customizable GPS function: we provide GPS function customized service by the WM-LR1110 module
Scan-and-Play Simplicity, Easy Configuration via Bluetooth in Just 1 min
Built-in Bluetooth avoids time-consuming configuration works to bring no code experience to individuals with less or no technical background to quickly get started with weather detection.
Powerful SenseCAP Mate App: data visualization and remote device management
Compatibility with Multiple Networks and Platforms: easily integrates with existing worldwide LoRaWAN networks
How to Select Gateway:
LoRaWAN network coverage is required when using sensors, there are two LoRaWAN network options.
Option 1: Sensors work in areas covered by Helium Network (Check on Helium Explore Map).
Option 2: Sensors work in a standard LoRaWAN network, like The Things Network, Loriot, Chirpstack, etc.
Multi-scenario Application
-
Backyard and Garden: Measure air temperature and humidity, rainfall, UV index, etc. in the backyard and garden to protect your family.
-
Smart Agriculture： Enable farmers to obtain climate data and information in time, take scientific management measures into production, and improve agricultural production capacity and level.
- Meteorology: Support applications in the professional meteorological field, for example, timely reflect the changes of various abnormal meteorological conditions in the field of traffic and transportation to provide real-time scientific basis data for traffic management departments.
-
Urban Weather: Provide real-time data for urban squares, parks, scenic spots, golf courses and other urban areas.
Ultra-low Power Consumption which is suitable for grid distribution
8-in-1 Weather Station: collect and upload air temperature, humidity, wind speed/direction, rainfall, light intensity, UV index, and barometric pressure data via LoRaWAN
