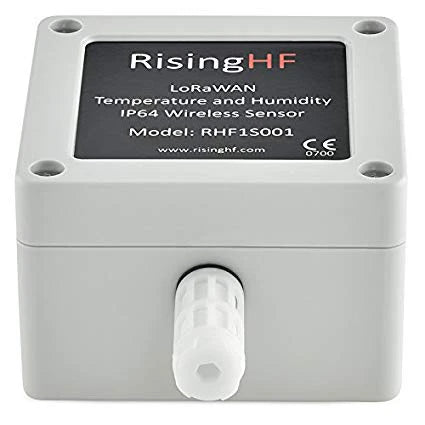

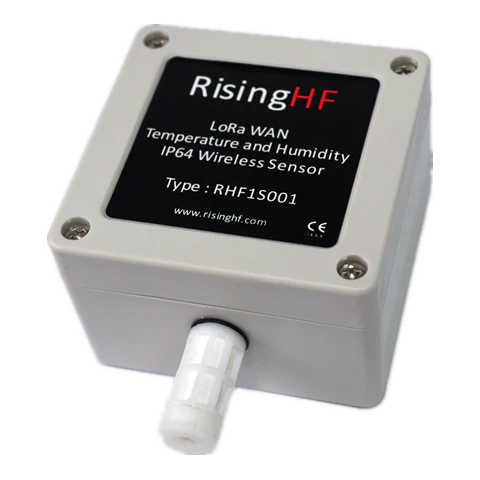

RisingHF - RHF1S001 Wireless LoRa WAN Temperature and Humidity Sensor Sku: RHF1S001 + ELE-ER34615-BAK

Wireless LoRaWAN Temperature and Humidity Sensor

RisingHF temperature and humidity sensor offers cost effective LoRa WAN end node solution for a variety of applications.

Its reliable and low power design allows a battery operation up to 5 years without any maintenance.

IP64 enclosure concept and water splash proof unique sensor design are ideal for outdoor use and installation in low accessibility locations.

Sensor acquisition rate could be adjusted via LoRa WAN Class A downlink capability and permit to manage the battery life or the measurements capacity according to the needs of the application.

Rising HF sensors family is fully compatible and plug & play for LoRa WAN network operation.

Applications

• Heating

• Drying

• Ventilation & air conditioning systems

• Weather station

• Refrigeration equipment

• Building automation

Features

• Powered by lithium thionyl chloride battery:5 years of operation for 1 uplink per minute.

• Extended industrial operating temperature:-40°C to +85°C.

• Outdoor use: IP64 enclosure.

• Accuracy:

                 ±5% RH typically from 20% RH to 80% RH at 25°C.

                 ±0.5°C typically from +5°C to+60°C.

• LoRaWAN compatible: Class A, uplink rate programmable from 1 minute to 24 hours.

• Support NA915, AU915, AS923MHz

• Operating frequency bands (Option at order): 434MHz,<10mW radiated power.

                 868MHz,<25mW radiated power

                 920MHz,<25mW radiated power

Datasheet:      RHF1S001 Datasheet.pdf

Software:        AU915

                        AS923

Documents:    RCFG tools user guide

Documents:    RHF1S001 user guide

Documents:    RHF1S001 FW upgrade guide

Latest FW:       RHF1S001-v2.5.4.zip

Certification:   RCM Approval

Software:         RCFG.exe
