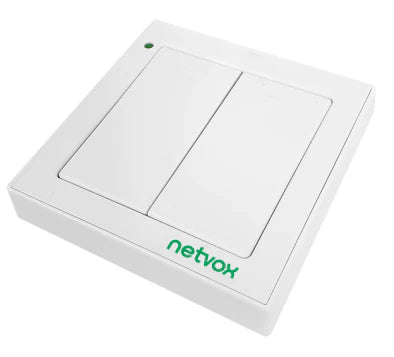

RB02B - Netvox LoRaWAN wireless 2-Gang Push Button Sku: RB02B-AS923
RB02B - Netvox LoRaWAN wireless 2-Gang Push Button Sku: RB02B-AS923
Regular price
$115.00 AUD
Regular price
Sale price
$115.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
NETVOX RB02B is a LoRaWan wireless control terminal device for smart homes and high reliability. It features low standby power consumption and is fully compliant with the LoRaWAN™ protocol standard.
The device has two trigger buttons. According to the requirement of different applications, press the trigger button of RB02B, and the device will immediately send the trigger information to the gateway. RB02B is compatible with the LoRaWAN protocol
Example Applications
The device is universal an can be used for many applications. Ideally suited for a wide range of applications such as building automation, condition monitoring, predictive maintenance, security, healthcare and many more use cases.
For example:
Home / Schools / Classroom / Reading room / Laboratory
Offices PC room / Working / Meeting room / Canteen / Restroom
Factories Production hall / Laboratory, inspection work / Storage
Hospitals / Bedroom / Entrance area / Restaurant / Bars / Staircases
Home / Schools / Classroom / Reading room / Laboratory
Offices PC room / Working / Meeting room / Canteen / Restroom
Factories Production hall / Laboratory, inspection work / Storage
Hospitals / Bedroom / Entrance area / Restaurant / Bars / Staircases
Features of NETVOX Sensors
• Wireless range of 10 km *
• LoRaWANTM Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Battery Life* :
5 years (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm, LoRa spreading factor SF = 10)
• Over-the-air updates (future)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
-
*Actual range may vary depending on environment.
*Battery life is determined by sensor reporting frequency and other variables
Technical Specifications
| Input Power | 2pcs 1.5V AAA battery |
|---|---|
| Working Voltage | DC 2.1V～3V |
| Standby Current | 14uA/3.0V |
| Tx Current | 120mA/3.0V |
| Rx Current | 11mA @3.0V |
| Voltage Threshold | 2.1V |
| Battery Voltage measurement accuracy | ±0.1V |
Frequency
| Tx Power | 19dBm±1dBm |
|---|---|
| Rx Sensitivity | -136dBm (LoRa，Spreading Factor=12，Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Build-in antenna |
| Communication Range | Build-in antenna |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU863-870，US902-928，AU915-928， KR920-923，AS923，CN470-510 Configured before shipment |
Physical
|
Main Body Dimension |
81.7mm x 81.7mm x 14.3mm |
|
Operating Temperature |
-20℃ ～ 55℃ |
|
Environment Humidity Range |
<90% RH (No condensation) |
|
Storage Temperature |
-40℃ ～ 85℃ |
Datasheet:
RB02B.pdf
User manual:
RB02B_UG.pdf
Battery Calculator:
Netvox LoRa Command Resolver:
LoRa Command Resolver
