LLMS01 - Dragino LoRaWAN Leaf Moisture Sensor Sku: LLMS01-AS923

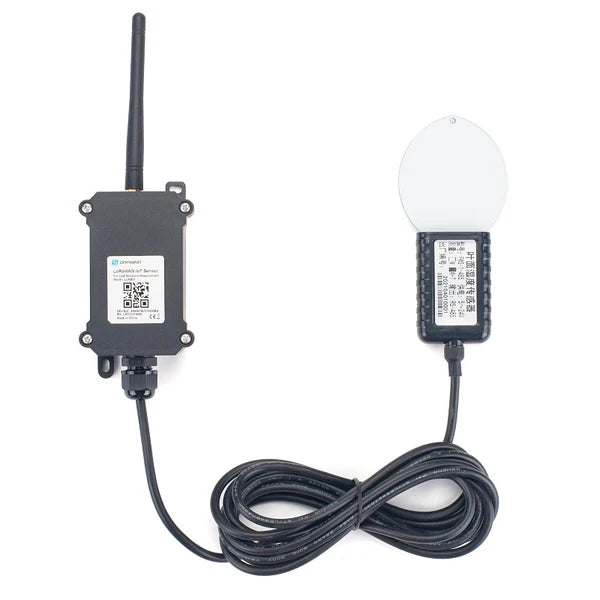

The Dragino LLMS01 is a LoRaWAN Leaf Moisture Sensor for IoT of Agriculture. It is designed to measure the leaf moisture and temperature, so to send to the platform to analyze the leaf status such as : watering, moisturizing, dew, frozen. The probe is IP67 waterproof.

LLMS01 detects leaf’s moisture and temperature use FDR method, it senses the dielectric constant cause by liquid over the leaf surface, and cover the value to leaf moisture. The probe is design in a leaf shape to best simulate the real leaf characterizes. The probe has as density as 15 leaf vein lines per centimeter which make it can senses small drop and more accuracy.

The LoRa wireless technology used in LLMS01 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
LLMS01 is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each LLMS01 is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on

Default FW in AS923, but it support US915, AU915 and all 900MHz Frequency by loading different FW, it could also support 868MHz if loading 868MHz FW, but there will be slight 0.5-1dB loss here.

Feature:

• LoRaWAN 1.0.3 Class A
• Monitor Leaf temperature
• Monitor Leaf moisture
• Ultra-low power consumption
• AT Commands to change parameters
• Monitor Battery Level
• Bands: CN470/EU433/KR920/US915/
  EU868/AS923/AU915/IN865
• AT Commands to change parameters
• Uplink on periodically
• Downlink to change configure
• IP66 Waterproof Enclosure
• IP67 rate for the Sensor Probe
• 8500mAh Battery for long term use

Probe Specification:

Leaf Moisture: percentage of water drop over total leaf surface

• Range 0-100% Resolution: 0.1%
• Accuracy: ±3%（0-50%）；±6%（>50%）
• IP67 Protection Length: 3.5 meters

Leaf Temperature:

• Range -50℃～80℃ Resolution: 0.1℃
• Accuracy: <±0.5℃(-10℃～70℃)，<±1.0℃ (others)
• IP67 Protection
• Length: 3.5 meters

Applications:

• Smart Agriculture

LoRaWAN frequency and Countries/Regions

 Datasheet:                  LLMS01.pdf

Operation manual:      LLMS01 User manual.pdf

Configure manual:      LLMS01 AT command.pdf

Decorder:                    LLMS01 decorder - TTN.txt
